General
Vorheriges Thema  Nächstes Thema

Please click in the image on that option you want to learn more about.


Select language:


The measurement program is available in a large number of languages.

Select the language from the drop down list and all text will

immediately be translated into the new language, after clicking OK.

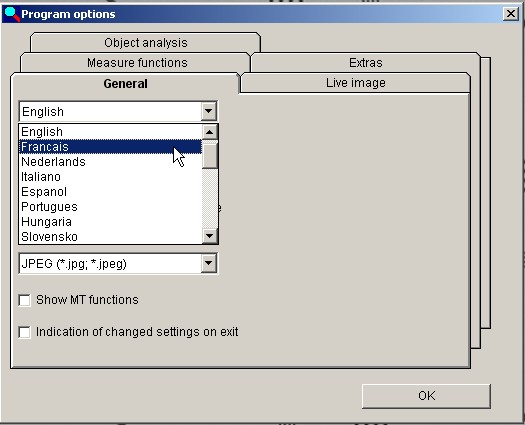

Example: switch from English to French

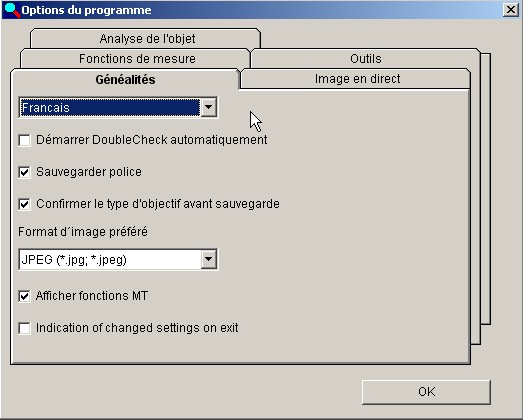

Directly switched to French




Automatically start double check:

A description you find HERE

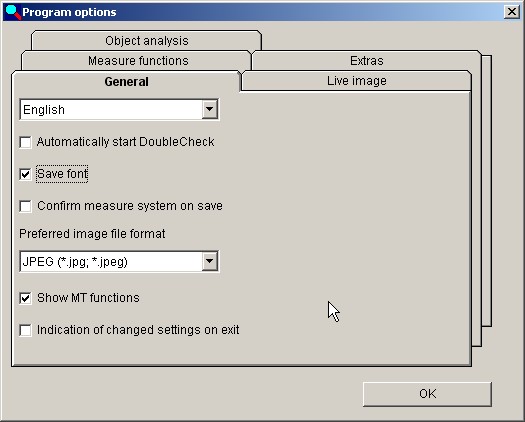

Save font :

If this function is activated (equipped with a check mark), the font

settings will be saved together with the others.


Confirm measure system on save:


When this option has been activated, then each time images are

saved, the user is asked if the currently selected lens in the

software is corresponding to the lens for the video source.



Clicking on "Yes" will save the image. Clicking on "No" interrupts

the saving operation. Now one can select another lens. That

automatically leads to it, that the measured values in the table

are recalculated to the new values. There is no need to repeat the

measurements

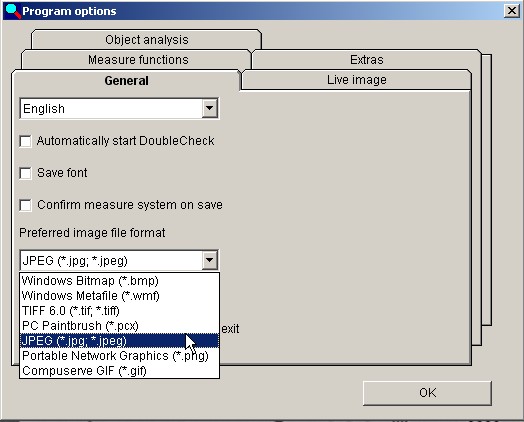

Preferred image file format:

You can use this drop down list to set an image format which the

dialog box then suggests when you save the images.  The selected

image format is suggested when images are saved. If necessary the

image format can be changed.




Show MT Functions MT only



As a supplement it is possible to switch off the buttons of the

MT functions (combination of measurements), because in the

majority of cases these functions are not needed for reading

out Z-values.

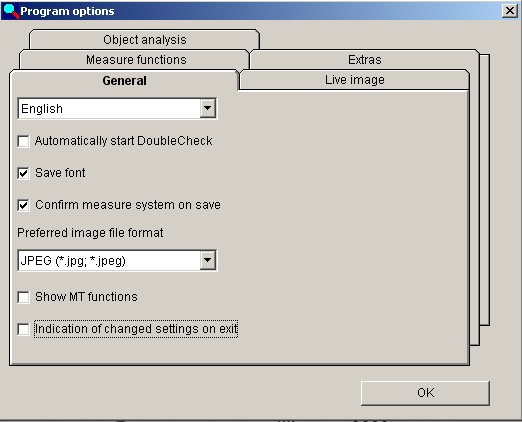

Indication of changed settings on exit


If this option is activated, the following window appears when

closing the program:



when clicking on "Yes", the altered settings can be saved under

an own name. (Save settings)


When clicking on "No", this window does not show up, and the

alterations will not be taken over at the next start of the program.
