The measurement program allows the use and administration of up to

100 different lenses or measurement systems together

with their associated calibrations.

Add lens / measurement system                              Video examples

This command allows you to add a new lens / measurement

system provided that fewer than 100 lenses have already

been defined.  The user can assign any name he chooses,

although no name can be used twice. The lens / measurement

system is given an entry in the list and a PE calibration.

Access to the measurement systems can be protected by

assigning a password.

Delete lens / measurement system

This command removes the current lens / measurement

system from the list.                                              Video examples

Edit lens / measurement system

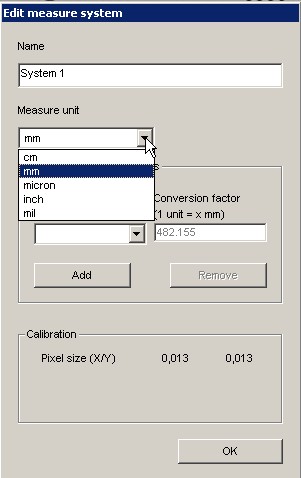

This command opens the following window:

When the unit of measurement has been changed any

existing values are converted immediately



The name can be changed.

You can use the central section to add new units. You are free

to choose any name.For an accurate calculation the conversion

factor in mm must be entered as precisely as possible.

List of lenses / List of measurement systems

All existing lenses / measurement systems are shown in a list.

Click on one of these lenses / measurement systems to select it.

check mark appears in the menu against the currently selected

lens / measurement system and the lens / system also appears

in the status bar to the bottom left of the main window.

Selecting a lens results in the automatic conversion of all

values to the calibration associated with the lens. There

is no need to repeat the measurements.
