You can use the toolbar to access the pixel lens and make an especially

precise adjustment of the measurement points. The pixel lens does not work

with a live image. Clicking on the button copies the live image once to the clipboard.

Caution: any existing measured values and reference objects are copied with the

image and are then linked to the image

The Pixel lens is equipped with a zoom, the window can be drawn down to the

right for seizing the measuring points easily.

The pixel lens and the numeric table can not be shown simultaneously

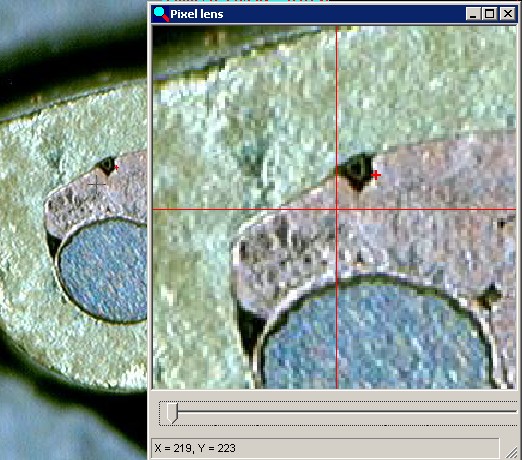

Use the pixel lens to click on the edge:

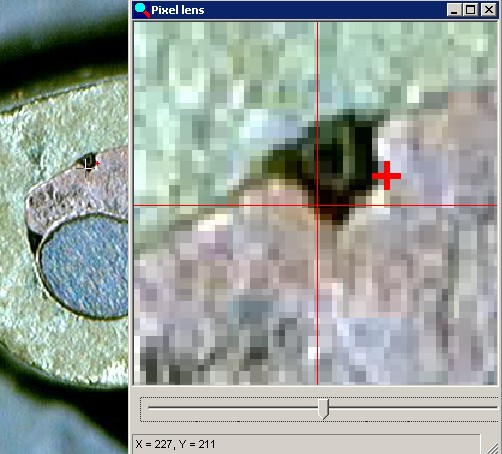

Use the slider to set the pixel lens to between 2* to 10*magnification.
