Before checking and setting up the encoder connectivity the system first has to be calibrated.

To set up the enocder connectivity properly, proceed as follows:

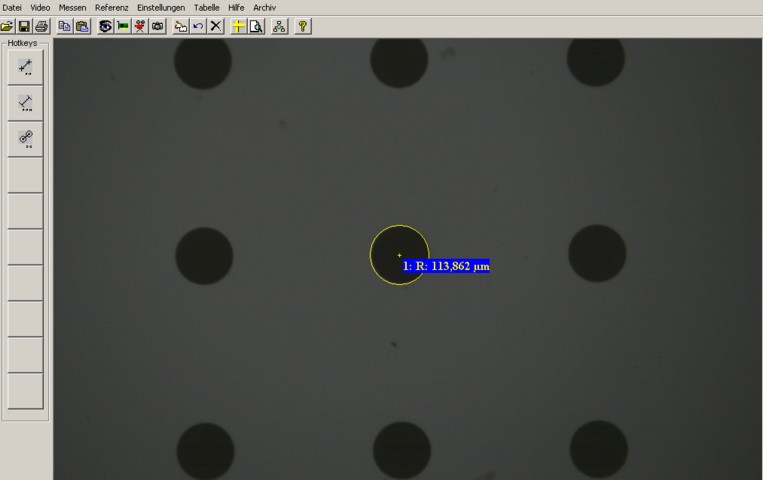

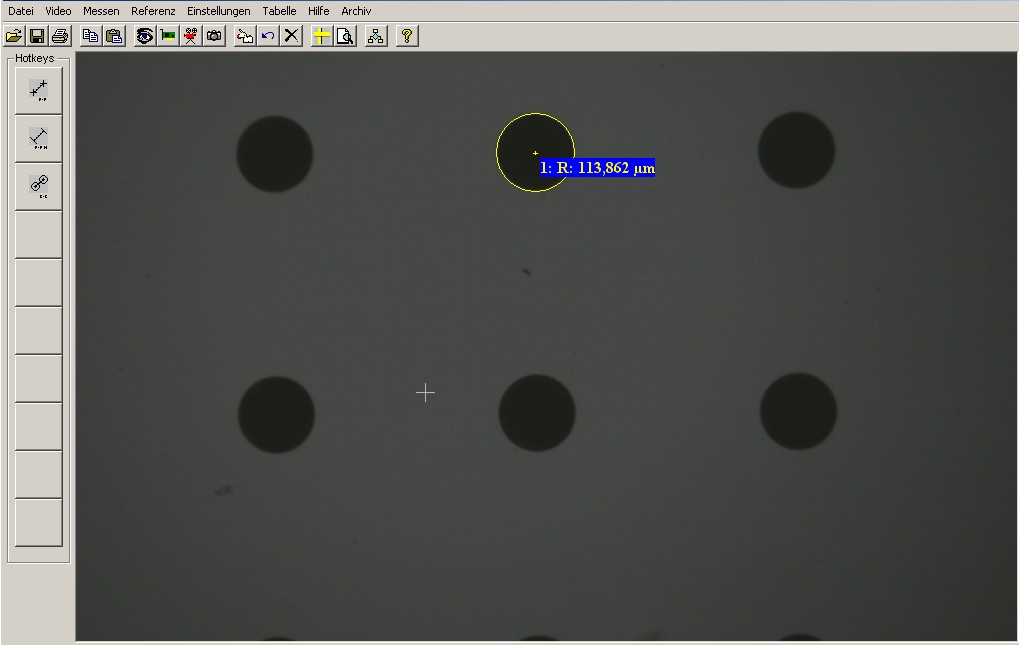

Carry out a measurement, for example of a radius, and complete this with a click of the right mouse button. Then move the stage a little in X and Y direction. The object and the graphic have to move

into the same direction.

If this is not the current case please click on "Settings" and then on "Connectivity".

The window for the connectivity has a tab for the general settings

and one tab for each available axis.

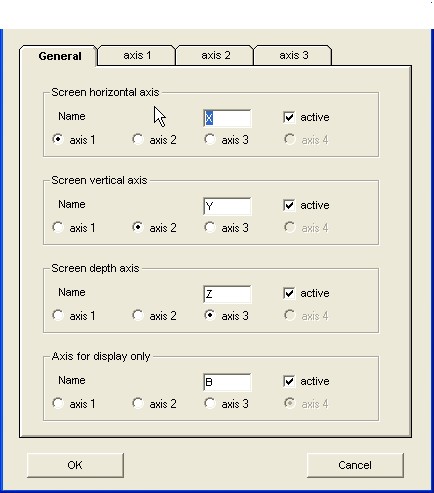

"General" allows you

       - to give the axis a name

       - to set the axis as active or inactive

         (inactive will only "display" the motor positions)

       - to set the axis number depending to the optical system

         and the movement on the monitor

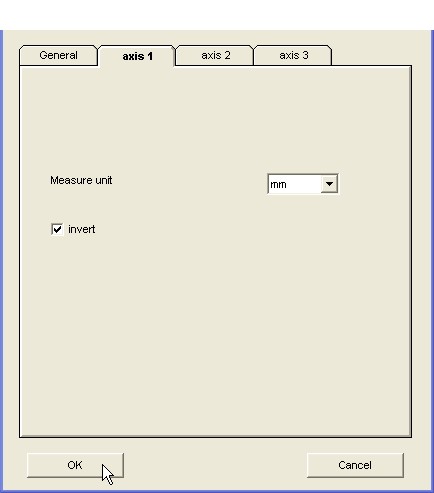

On the tabs for the available axis you can invert the

direction of the moving measuring values so that the

graphic will move into the same direction like the image.

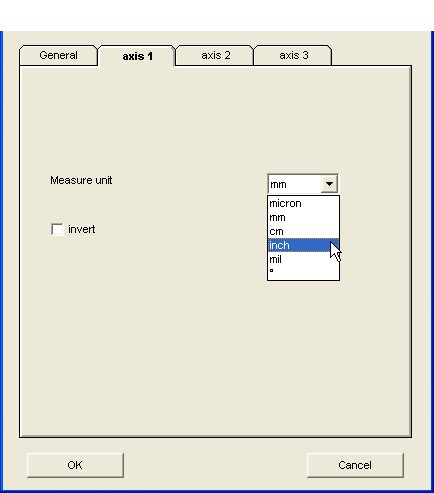

Furthermore the measure unit can be selected or changed.

Please delete the measuring table and measure again. Then check if the

measuring value is moving into the same direction like the measuring object.

If the calibration is ok the circle has to be "fixed" to the black point if the

point is moving. In this case the settings have to be saved.
