When the command "Video display" has been called up using the

button or the menu item under "Video", the digital cameras

in the uEye series from I*D*S which are directly supported by the

measurement program have the following adjustable parameters.

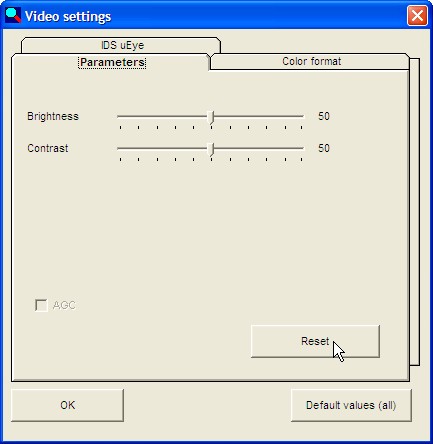

Tab 1: Parameters

After starting the program for the first time please click on

"Standard values" and then optimise the image using the sliders.

The gamma values should only be changed if all the other parameters

have not produced the desired result.

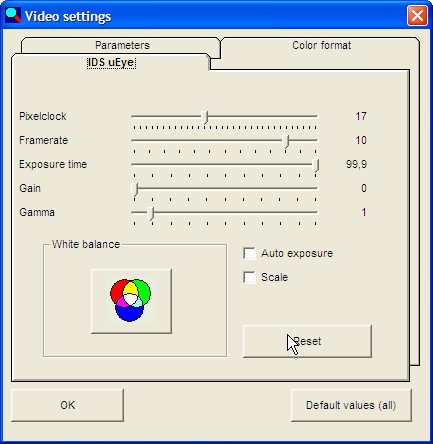

Tab 2: IDS uEye

For setting up the camera please click here.

Scaling the camera is dependent of the camera model. The list of

cameras for which scaling is / is not possible can be found here

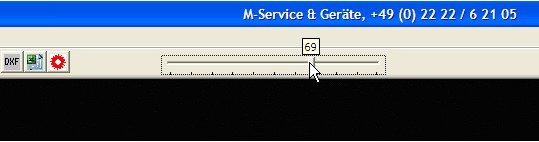

The slider for the exposure time is also comfortably available on the right side of the toolbar.

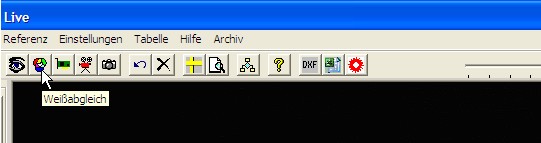

The button for the white balance is also in the toolbar available.

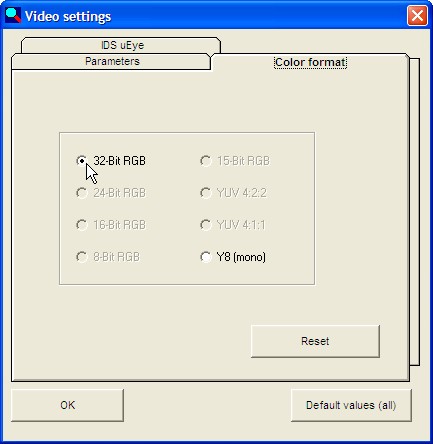

Tableau 3.

Here you can switch the camera to b/w (monochrome) or coulor mode.
