CAD fast load window
Vorheriges Thema  Nächstes Thema

The CAD fast load window allows you to open up and display CAD files directly.

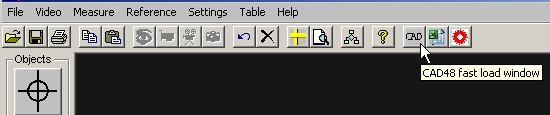

It can be opened by clicking on the button in the menu bar.

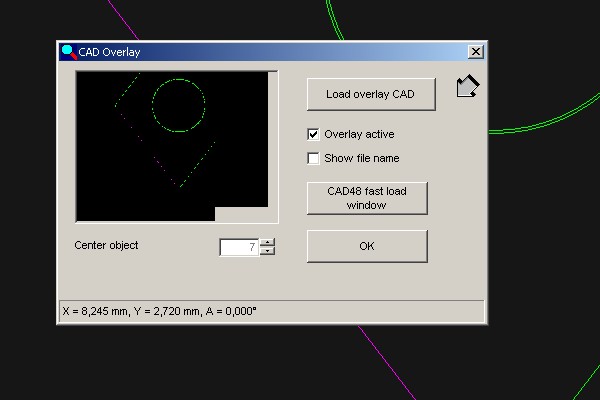

The file transfer is carried out by using the button "CAD fast load window" in the

preview window.




Once loaded and positioned, CAD objects can be transferred directly to the next window

by clicking the button "CAD 48 fast load window".


The file is always set to the first free button.

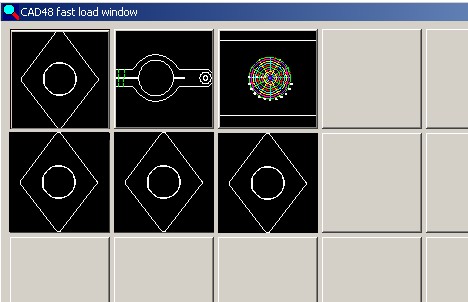

The objects shown in the window can be grabbed and freely arranged by clicking and

holding down the left mouse button.

The objects can also be deleted by moving over the “recycle bin”.

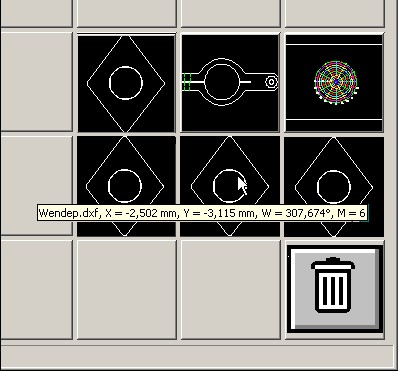

If the mouse pointer is over an occupied button the coordinates are faded in.

M=6 means that element 6 of the drawing has been centered.
