Angle 4 point
Vorheriges Thema  Nächstes Thema

The result of construction angle 4 point is produced by the following links of objects:

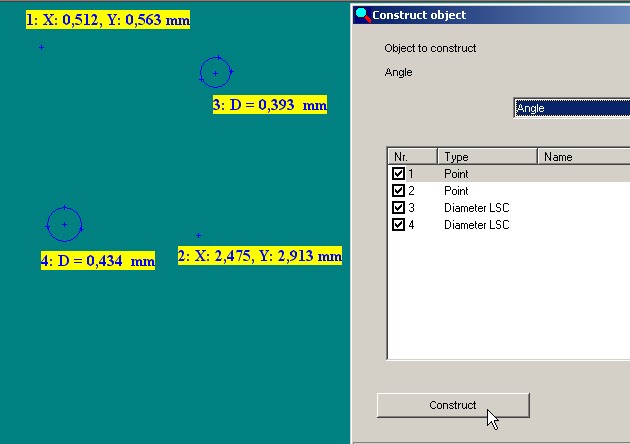

From two points and two circle centres an angle 4 point is constructed.

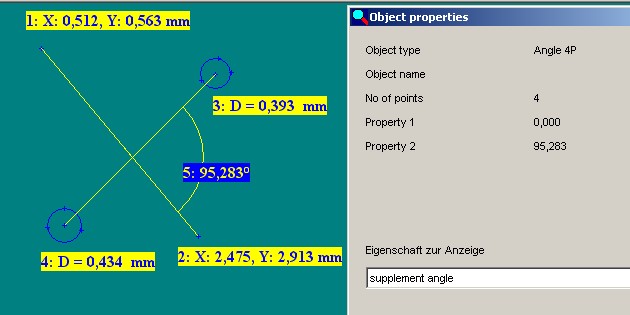

Other angles can be switched over in the “Object properties” window.



The desired angle can be chosen here. The switch over only follows after

clicking the “OK” button.

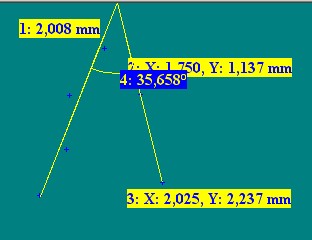

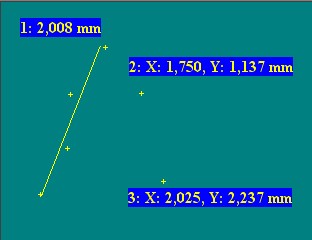

Angle 4 point made of a multi point line and two points.





Angle 4 point to be constructed from two multi point lines (Image1)


Image 2: here multi point line 1 has been marked before multi point line 2

in the construction window

Image 1                                                                   Image 2




Image 3: multi point line 2 has been marked before multi point line 1



Image 3

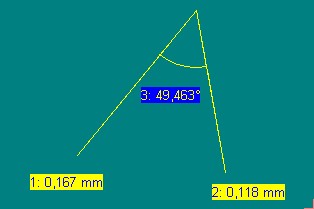

Certainly an angle 4P can also be constructed from two distances PP.





Here too, the sequence of marking in the construction window determines about

the kind of the displayed angle.
