Angle
Vorheriges Thema  Nächstes Thema

3 points

The user clicks on three points in the video image, in the following order:

first on the end point of the 1st arm then on the intersection point and finally

on the end point of the 2nd arm.

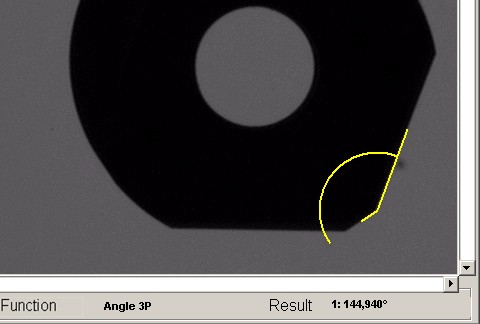

After clicking on the last point the angle is drawn and the

result appears in the status bar.

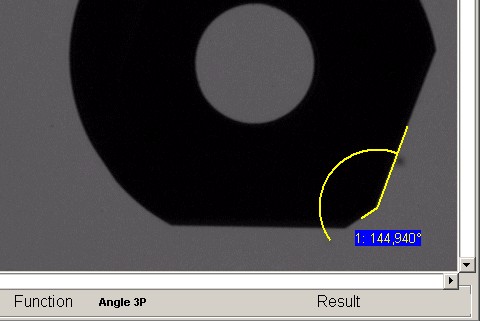

After having clicked on the right mouse button the result

appears in the image and is entered into the table.

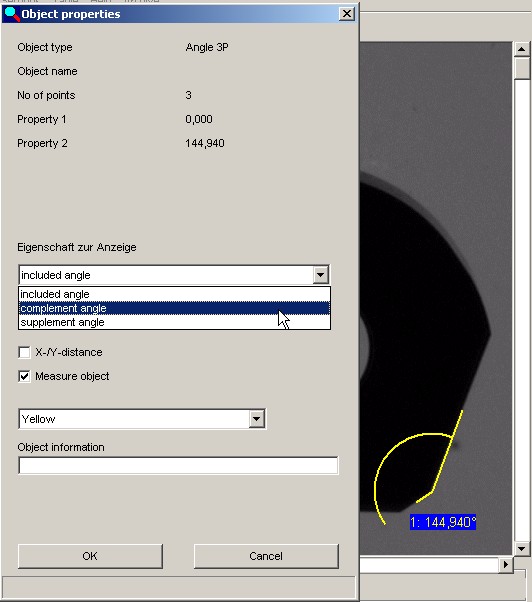

Using the object properties (click with right mouse button)

it is possible to display further angles.

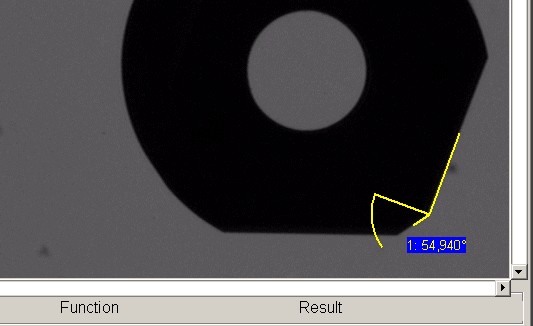

Complement angle

Supplement angle




4 points

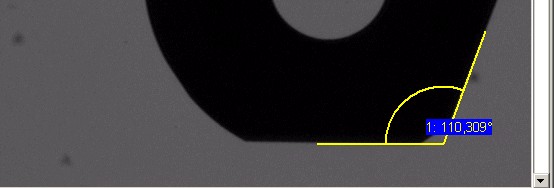

This command allows to measure the angle between two non-connected

lines. The user clicks on four points in the video image, in the following order:


First two points on the left arm, afterwards two points on the right arm


The apex of the angle is at the intersection point of the imaginary extension

of the two straights, beyond the second and third points clicked on. After

clicking on thelast point the angle is drawn and the result shown in the status

bar. After having clicked on the right mouse button the result appears in the

image and is entered into the table.

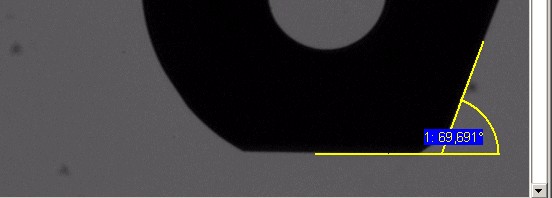

Here too one is able to display other angles using the object

properties.

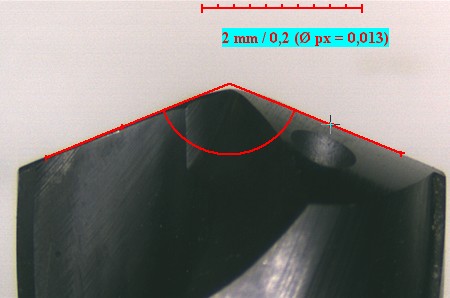

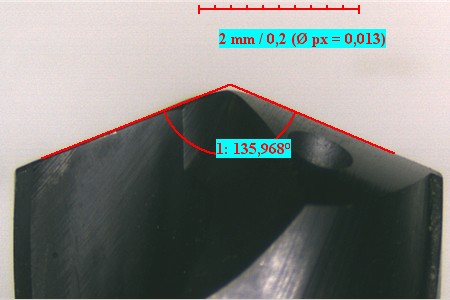

In addition it is possible to ascertain for instance the point angle

of drills with two cutting edges.




Further measurements of drills, for example clearance angle or cutting angle

in drills.
