Videology camera

General


The Videology camera is an analogue camera in which the zoom and focus are motor-powered.

The camera requires a framegrabber or a video  to USB 2 converter.

Zoom and focus are controlled via an RS 232 interface.

The program automatically searches for the interface (Com 1 to Com 3 ), but it can also be

selected manually.






Two lenses are available for the camera, which are permanently associated as close-up lenses

with a camera.Changing the lenses is not possible without taking special measures since the

lenses were calibrated together with this camera. Please also note the camera set-up when

measuring.


The Videology camera offers the following functions in combination with the measurement

program software:

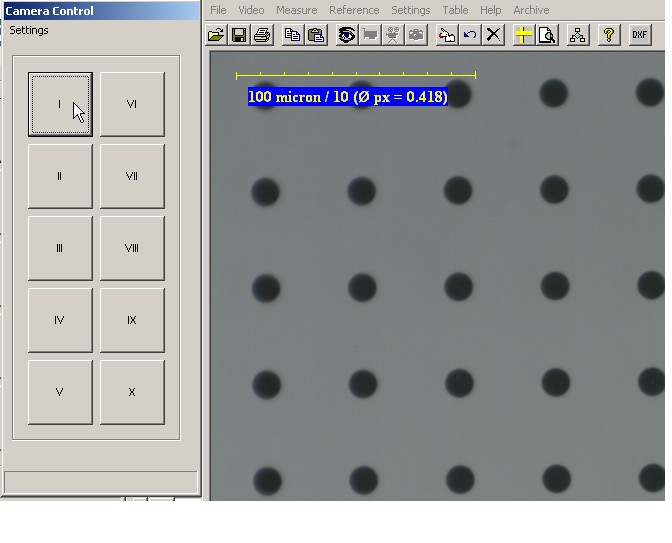

The image fields can be moved to in ten stages using a button. The stages are arranged in

reasonable sizes so that the image fields overlap.


To check the calibration a template is included in the materials delivered; it was used with the auto

calibrate function of the software. A factory test report was delivered with the template.
