Intersection points
|   |
|
Intersection points
| |
At the construction “Point“, made from two objects, the point of intersection will be entered into the table and the "Construct object" window after clicking on “Construct”.
1. Point from two multi point lines
2. Point from multi point line and multi point circle
3. Point from two multi point circles

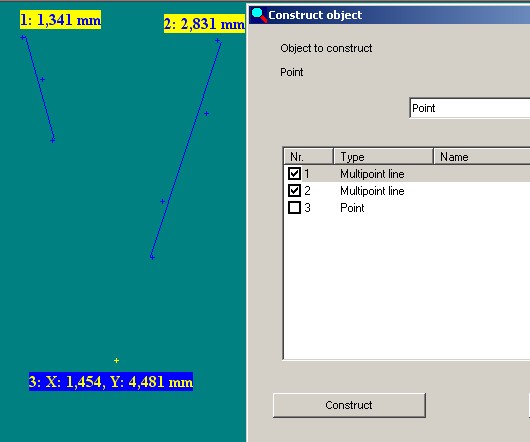

Point of intersection calculated by lengthening the lines.

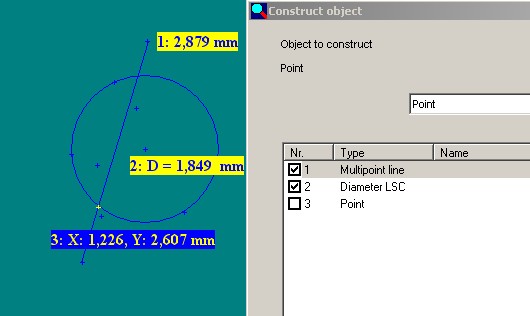

The point of intersection of a line and a circle is depending on which object
has been clicked first. In our example object 1 was clicked on before object 2.
The result is the green point of intersection at number 3.

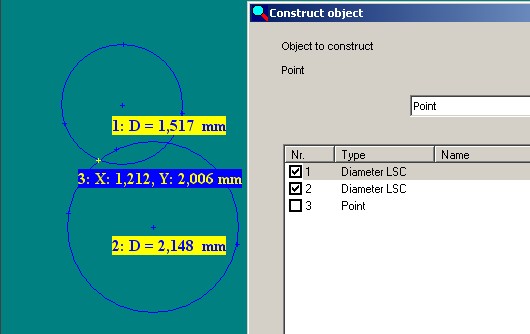

The point of intersection of two circles is also resulting from the order in which
the objects were marked. In this example object 1 has been marked first and then
object 2. The result is the green point of intersection at number 3.
