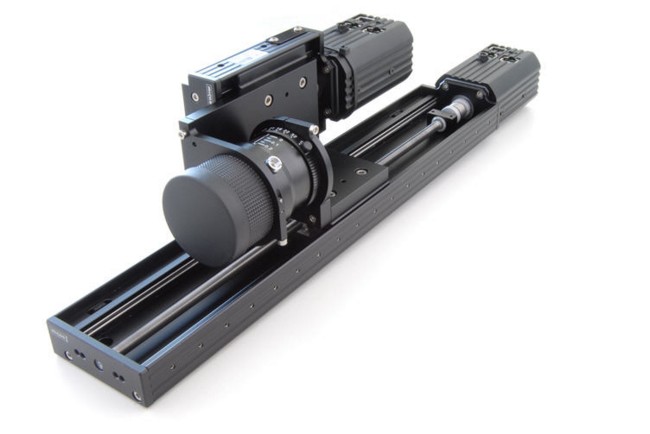

The Variozoom consists of two linear stages.

A 25 mm stage for magnification and a 300 mm stage for the focus.

The zoom factor has an amount of circa  4 : 1.

The model equipped with an automatic changer of converters has

a zoom factor of circa  10 : 1.

The zooming areas are separated into 10 sensible magnifying steps.

( Alterations on demand )

The controller is connected via a RS 232 interface.

Required power supply: 24 V / 2,5 A for both stages.

Supply and connection of the second stage is done via a single patch cable.

The technical dates concerning the fields of view, you’ll find here
