Measure WQ
Vorheriges Thema  Nächstes Thema

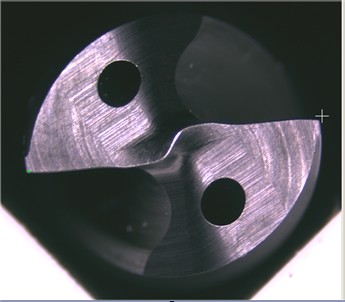

The  "Measure WQ" function ascertains the dead centre angle of, for

instance, drills and is carried out with two mouseclicks.Thereby this measurement

is completed automatically.

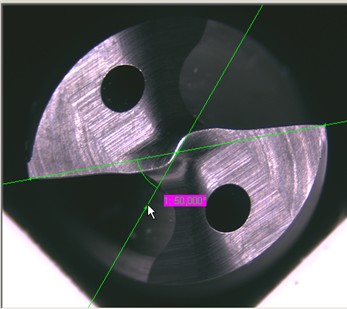

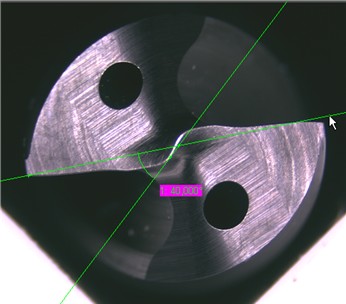

After having set two points at opposite cutting edges, automatically a throughout line

(which can still be fine adjusted) and a in the centre fixed line, which can be rotated

around the centre with the cursor, are faded.







The result will be entered into the table automatically, but is altering during fine

adjustment.
