Live image
Vorheriges Thema  Nächstes Thema

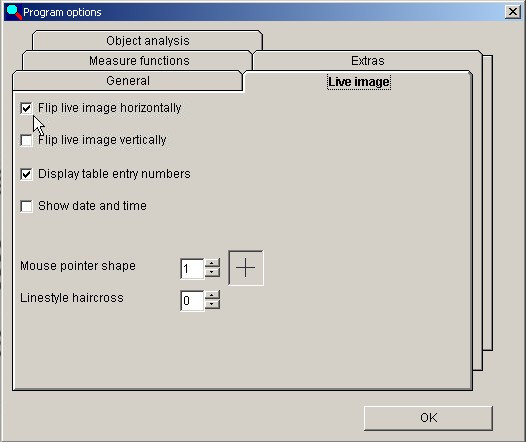

Flip live image horizontally/vertically

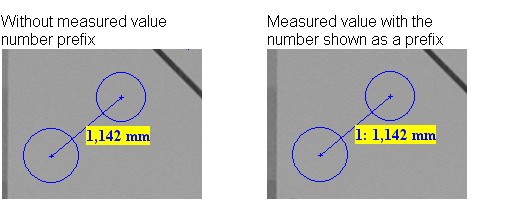

Display measured value numbers :




Show date and time:


If desired, date and time can be permanently displayed in the lower right

corner of the video image.


Mouse pointer in the measurement window

This click button can be used to select between different forms and colours

for the mouse pointer, so that the cursor can still be seen clearly whatever

the background. A preview of the cursor appears to the right of the click button.

You can choose between 10 different mouse pointer shapes.

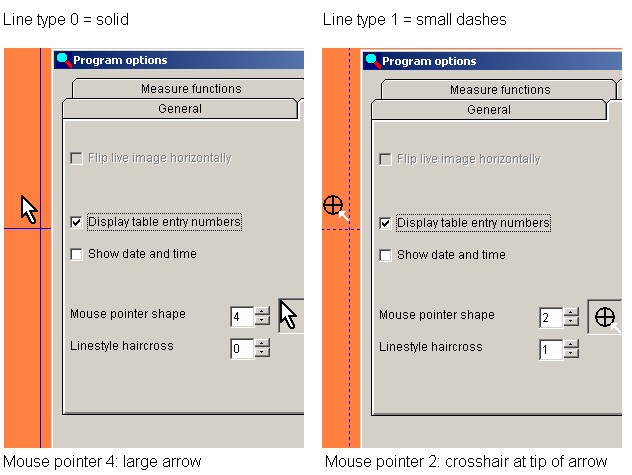

Mouse pointer shape examples below


Line style hair cross:

Select how the lines of the hair cross should be displayed. Please note that the

different representations of the lines only work if line width 1 has been selected.

.

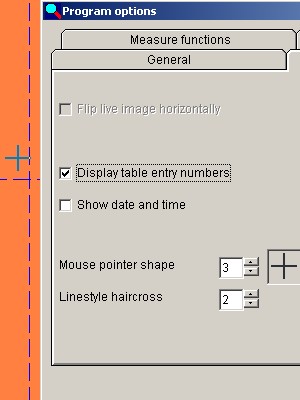

Line type 2 = large dashes

Mouse pointer 3:hair cross
