Circle
|   |
|
Circle
| |
With the function “circle” , multi point circles are constructed from the following objects.
1. Radius from multi point line and point
2. Radius from multi point line and circle centre
3. Multi point circle from points and/or circle centres
After clicking on “Construct”, a circle will be constructed and the radius entered into the table
as a new value

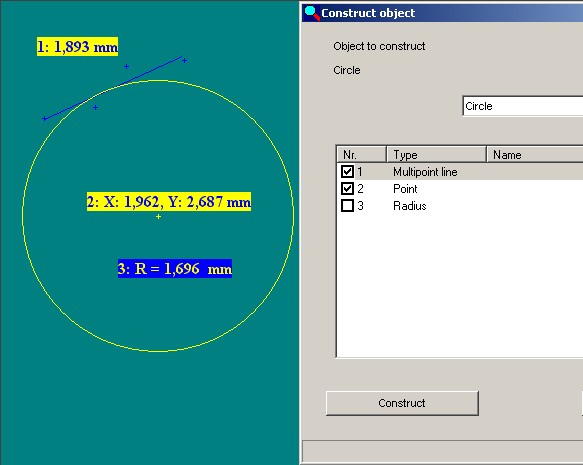

Circle construction from multi point line and point produces the new value: 3 Radius
The point is the circle centre and the tangent defines the radius.

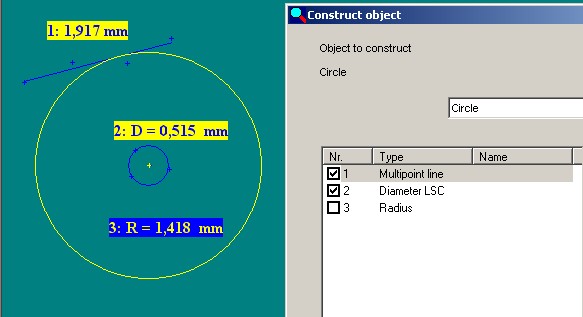

A circle construction from multi point line and circle again makes a new value: 3 Radius.
The centre of the multi point circle is kept as centre of the constructed circle and the tangent
defines the radius.
After clicking on “Construct”, a circle will be created from the objects and the “Radius”
will be entered into the table as a new value.

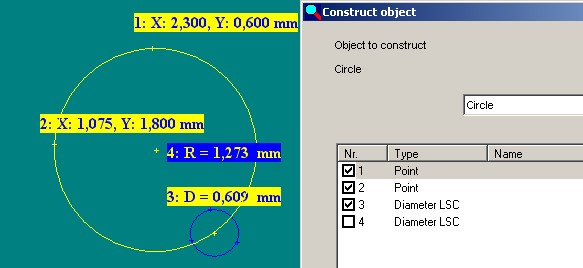

A circle construction out of at least 3 points results in a new value :
4 Diameter LSC.
The new, constructed circle corresponds to a multi point
circle again. After clicking on “Construct” ,a multi point circle will be constructed
and entered into the table as a new value “Diameter LSC”.
