Hair crosses
Vorheriges Thema  Nächstes Thema




A hair cross consists of two lines at 90 degrees to each other, which are

aligned parallel to the edges of the screen.

Fix

This command draws a fixed hair cross in the centre of the image.

Note: the program`s function and results bars limit the image detail shown

on the monitor. Depending on the screen resolution (min 800 x 600) it may

be that the whole of the live image cannot be seen in the measurement program

window. The fixed hair cross is always positioned centrally to the image detail.

When printing the image the hair cross may then again appear in the centre of

the full image.


Single

This command draws a movable hair cross on the screen. Dragging the

intersection point with the left mouse button positions the hair cross on

the video image.


The hair cross can also be moved using the cursor control buttons. Every

click on a button moves the hair cross 1 pixel in the direction of the selected

cursor arrow. If the Ctrl button is held down at the same time the hair cross

moves by 10 pixels.

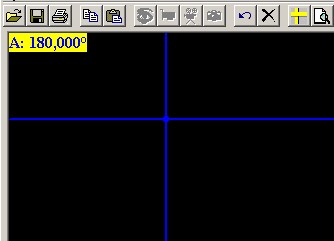

Hair cross, simple rotatable

The simple rotatable hair cross has the following functions:

Shift, Rotate, Centre

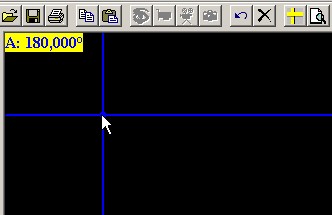

Shift the hair cross by dragging the        point of intersection

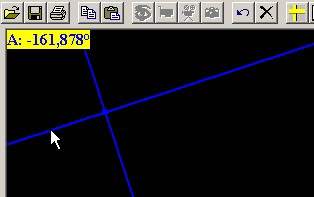

Rotate the hair cross by clicking outside the point of

intersection and dragging


Clicking again on the function "Hair cross - simple,

rotatable" centres the hair cross and sets the angle

back to 0 degrees.


This menu item can of course also be assigned to a

quick select button.

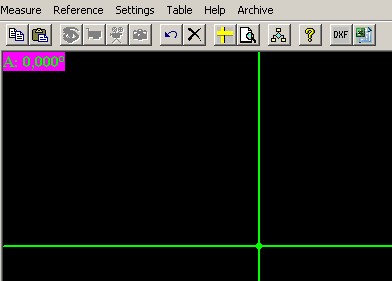

Hair cross centred and angle set to 0 degrees by clicking on

the function again.

Double

This command draws two movable hair crosses on the screen. Drag any one

of the intersection points with the left mouse button to position the hair crosses

on the video image. The distance between the centres of the two hair crosses

is shown in terms of X and Y distances in the upper left of the video window.

The first hair cross can be moved with the buttons, as with the simple hair cross.

The second hair cross can also be moved with the cursor control buttons if the

Shift button is held down at the same time. Every click on a button moves the

hair cross by 1 pixel. If the Ctrl button is held down at the same time the

hair cross moves by 10 pixels.





Double hair cross, square, rotatable

Control using the Cursor


The double hair cross has two circular shaped intersection

points, centres 1 and 2. These centres can be moved with the

mouse or with the arrow buttons, as already described for the

normal double hair cross.



In addition the hair cross has a square intersection point which

the mouse can "grab" and then use it to rotate the hair cross.

The angle between the sides of the hair crosses remains a right angle.

In some cases the point resolution of the screen may give the

impression that the angle is not a right angle. The hair cross

can also be rotated using the arrow buttons. To do this press

<ALT> and the arrow buttons (rotates the hair cross 0.001 rad per step)

or <CTRL><ALT> and the arrow buttons (rotates 0.03 rad per step).

The spacing of the hair cross and the angle of rotation are shown in the

upper left corner. These measured values can be inserted in the table.

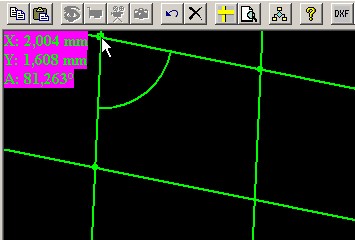

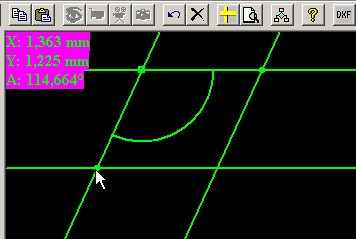

Double hair cross, variable angle  Controlled via Cursor

The hair cross can be moved as desired using the two circular centres

and the square centre. The spacing and the angle between the sides

of the hair cross are shown in the upper left corner. These measured

values can be inserted in the table.

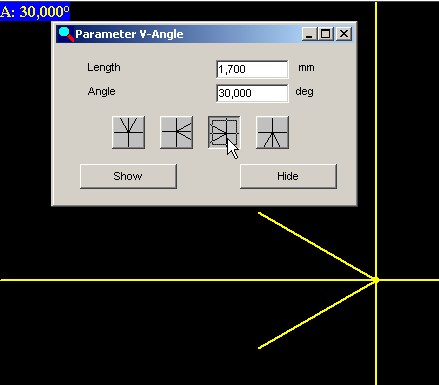

Hair cross V- angle


After calling up this function, the following window appears, in which

one can choose length, dimension and direction of the V-angle



Afterwards one can shift the V-angle either by dragging it with the

mouse or by using the cursor control, and alter it`s dimension by using :


Ctrl and   + / -  (number block)            or            Fn   + / -





Double

This command draws two movable hair crosses on the screen. Drag any one

of the intersection points with the left mouse button to position the hair crosses

on the video image. The distance between the centres of the two hair crosses

is shown in terms of X and Y distances in the upper left of the video window.

The first hair cross can be moved with the buttons, as with the simple hair cross.

The second hair cross can also be moved with the cursor control buttons if the

Shift button is held down at the same time. Every click on a button moves the

hair cross by 1 pixel. If the Ctrl button is held down at the same time the

hair cross moves by 10 pixels.


Off

This command masks all haircrosses out
